Description

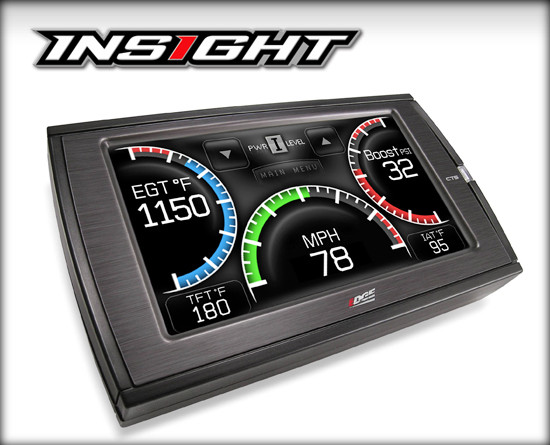

The Edge Products 83830 Insight CTS is an all-in-one digital monitor that will provide you with the info you need to know to monitor your engine vitals. With unmatched control and style, the Insight CTS offers the most advanced technology in engine monitoring available today. The Insight CTS is compatible with any OBDII-enabled vehicle 1996 and newer.
The Insight CTS offers many of the same great features and benefits users have come to expect from Edge Products, along with a whole host of exciting additional features.
FEATURES
- Available for 1996 and newer vehicles equipped with an OBDII (diagnostic)port
- Full-Color, High-Resolution, 4.3-inch Touch Screen (CTS)
- Displays available SAE data from your vehicle's computer*
- Data parameters (PIDs) on CTS products will vary by vehicle year, make, and model.
- View parameters in numeric or analog style gauge display
- Built-in safety features: user-defined visual and audible alerts
- Digital gauge display/scan tool (does not reprogram/tune the vehicle or add power)
- Can be used in conjunction with Edge or other performance products to read vital engine data
- Great Value because it monitors much more than just a typical 3-guage cluster
- Sounds user-defined audible alerts
SCAN TOOL
Capture and record even more information about the vehicle's performance with the Insight's scan tool feature.
- Displays and clears diagnostic trouble codes with full text description*
- Displays peak values such as speed and RPM*
- Performance testing: 0-60 and quarter-mile times
BONUS FEATURES
Adjust your EFILive Tuned PCMS on-the-fly. On 2001-2005 LB7 and LLY Duramax engines you can now change the power levels on-the-fly created by your EFILive custom tuning software with your Edge Insight CTS! Simply use your EFILive software to change your DSP5 Switch Type from hard wire to serial. Once you are set up to support serial communication, simply use the up and down arrow buttons on your Insight to adjust EFILive tunes on-the-fly.
- Displays Fuel Rail Pressure on Duramax Engines
- Displays Diesel Particulate Filter (DPF) Regeneration Status on new diesels with DPF traps
